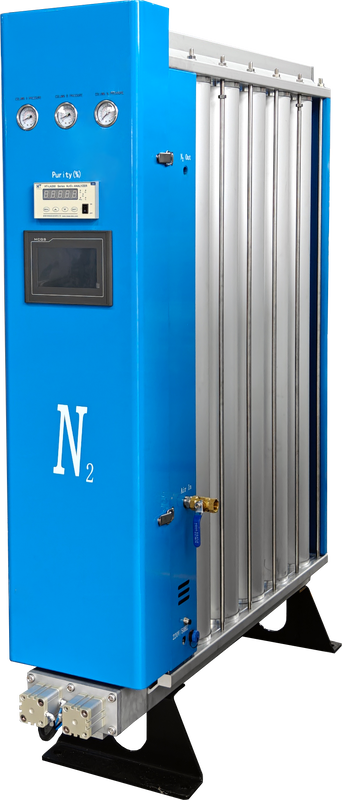

Name: EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control
Brand: JoShining Energy & Technology Co.,Ltd
SKU: EPB-40MZ
Price: 38500.00 USD
Availability: InStock

Evde > Ürünler > PSA azot jeneratörü >

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Menşe yeri:

Guangdong, Çin

Marka adı:

Joshining

Sertifika:

ISO 9001:2015, CE

Model numarası:

EPB-40MZ

Bize Ulaşın

Teklif isteyin

EPB-40MZ Modular PSA Nitrogen Generator 40Nm3/h 98% Purity with Energy Saving VP Control

Ürün detayları

Azot akış hızı:

40 Nm3/saat

Azot saflığı:

%98 (%95-99,999 mevcut)

Hava-Azot Oranı:

%99,99 saflıkta 4,2:1

Hava Talebi:

1,2 Nm3/dak

Adsorpsiyon basıncı:

0.7 MPa

Azot çiğlenme noktası:

-40°C ila -70°C

Kontrol Sistemi:

VP Enerji Tasarrufu Mantığına sahip PLC

boşluk malzemesi:

6063-T5 Havacılık Sınıfı Alüminyum Alaşımı

Gürültü Seviyesi:

≤80 dB

Güç kaynağı:

220V/380V 50HZ/60Hz

Boyutlar (UxGxY):

400x1175x1810 mm

Ağırlık:

338 kilo

Çıkış Bağlantısı:

Rp1/2

Vurgulamak:

Low Air-Nitrogen Ratio 4.2 to 1

VP Adaptive Energy Saving Control

Modular Aluminum Alloy Cavity Design

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 takım

Fiyat

USD 38500.00 / Set

Ambalaj bilgileri

Vakumla kapatılmış nem bariyeri, darbeye dayanıklı köpük ara parçaları ve güçlendirilmiş çelik çembe

Teslim süresi

Yatırıldıktan sonra 15-25 iş günü

Ödeme koşulları

T/T,L/C

Yetenek temini

Ayda 100 takım

İlişkili Ürünler

EPV-15MZ+ Plus Twin Tower PSA Nitrogen Generator with 99.999% Ultra High Purity and 15Nm3/h Flow Rate Featuring PLC Control

En İyi Fiyatı Alın

99.99% saflık ve% 90 maliyet tasarrufu ile Fiber Laser Kesme için Yerel PSA Azot Jeneratörü

En İyi Fiyatı Alın

Akıllı Boyutlu Taşınabilir PSA Azot Gazı Santrali Otomatik İşlem

En İyi Fiyatı Alın

Video

Azot Jeneratörü Saflık 99.9995 Lityum Elektrik Endüstrisi

En İyi Fiyatı Alın

Bize Ulaşın

Şimdi iletişime geçin

Ürün Açıklaması

EPB-40MZ Modular PSA Nitrogen Generator 40Nm³/h 98% Purity 4.2:1 Air Ratio Energy Saving VP Control

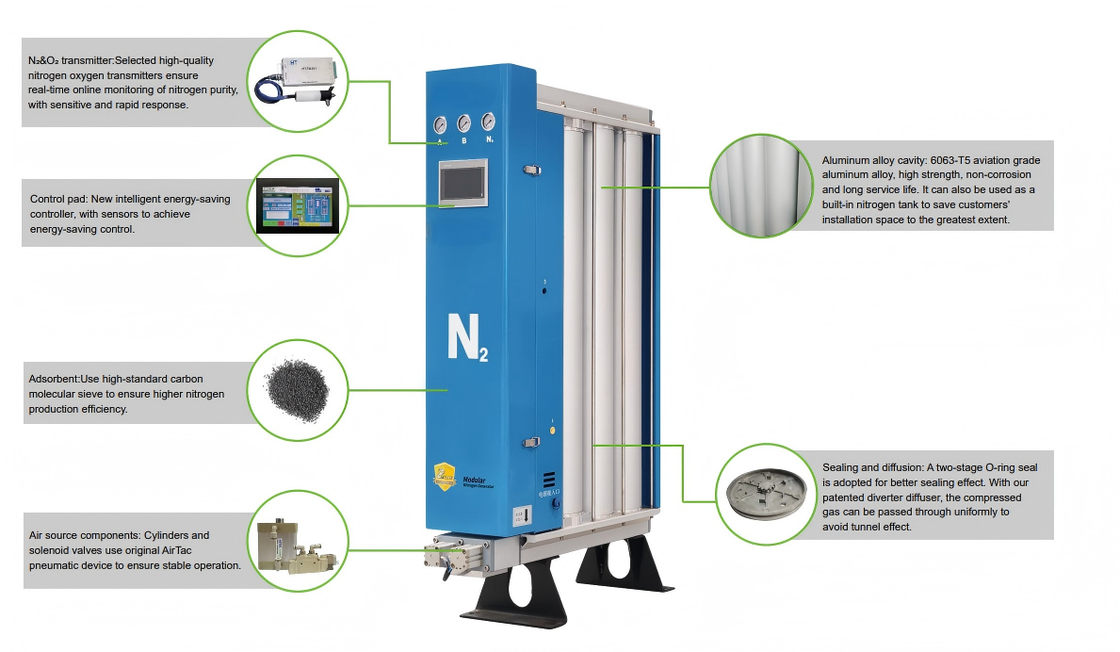

EPB-40MZ Modular PSA Nitrogen Generator — Industry-Leading Energy Efficiency

The EPSEA EPB-40MZ is a modular Pressure Swing Adsorption (PSA) nitrogen generator engineered for maximum energy efficiency. With a class-leading 4.2:1 air-to-nitrogen ratio at 99.99% purity, it consumes 15% less compressed air than conventional twin-tower systems (5:1 ratio), directly reducing operational energy costs.

Key Energy-Saving Technologies

VP Control Logic

Adapts to real-time load fluctuations, automatically regulating switching cycles to reduce air consumption by 15-50% under partial-load conditions.

Optimized Air Ratio

High-performance carbon molecular sieve achieves 4.2:1 air-to-nitrogen ratio — vs. industry average 5:1 — requiring only 2.8Nm³/min compressed air for 40Nm³/h N₂ output.

Auto Standby Mode

Intelligent controller automatically pauses operation when nitrogen demand drops, eliminating idle energy waste.

Average Split Flow

Patented diffusion technology maximizes adsorbent utilization, ensuring every gram of carbon molecular sieve works efficiently.

Technical Specifications

Nitrogen Flow: 40 Nm³/h
Nitrogen Purity: 98% (up to 99.999%)
Air Demand: 1.2 Nm³/min
Adsorption Pressure: 0.7 MPa
Nitrogen Dew Point: -40°C to -70°C
Cavity Material: 6063-T5 Aluminum Alloy
Control System: PLC + HMI Touch Screen
Dimensions: 400 * 1175 * 1810 mm
Weight: 338 kg
Power Supply: 220V/380V 50Hz/60Hz

Built for Industrial Reliability

The modular aluminum alloy cavity design eliminates internal corrosion risks, extending service life beyond 20 years. Unlike traditional pressure vessel designs, the module requires no annual pressure vessel inspection, saving both time and compliance costs. Integrated high-resolution HMI provides real-time monitoring of nitrogen pressure, purity, flow rate, and system status with automatic unqualified nitrogen evacuation.

Energy Comparison: A 40Nm³/h EPB-40MZ modular system consumes only 2.8Nm³/min of compressed air, while an equivalent twin-tower system requires 3.3Nm³/min — that's 15% less energy for the same output. With VP control logic engaged, air savings can reach up to 50% under partial-load operation.
